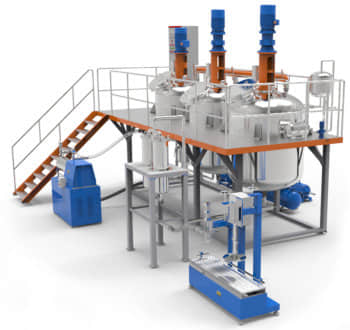

Paint production equipment is a kind of equipment specially for producing all kinds of paints, especially architectural paints. Paint manufacturing mainly consists of three processes: dispersion, mixing and packing. There are two types of paint production process: manual production and automatic production. The main equipment of manual production includes hydraulic high speed disperser, batch mixer and mobile tanks. A automatic paint production line is mainly composed of sealed tank, fixed disperser and mixers, feeding system, filtering and packing system. The whole production process is controlled by electrical automation and requires very little manual labor. Moreover, equipment for producing different paints is not same according to different formula. Meanwhile, a paint production line needs to be designed based on the user's production capacity demand and the actual site conditions.

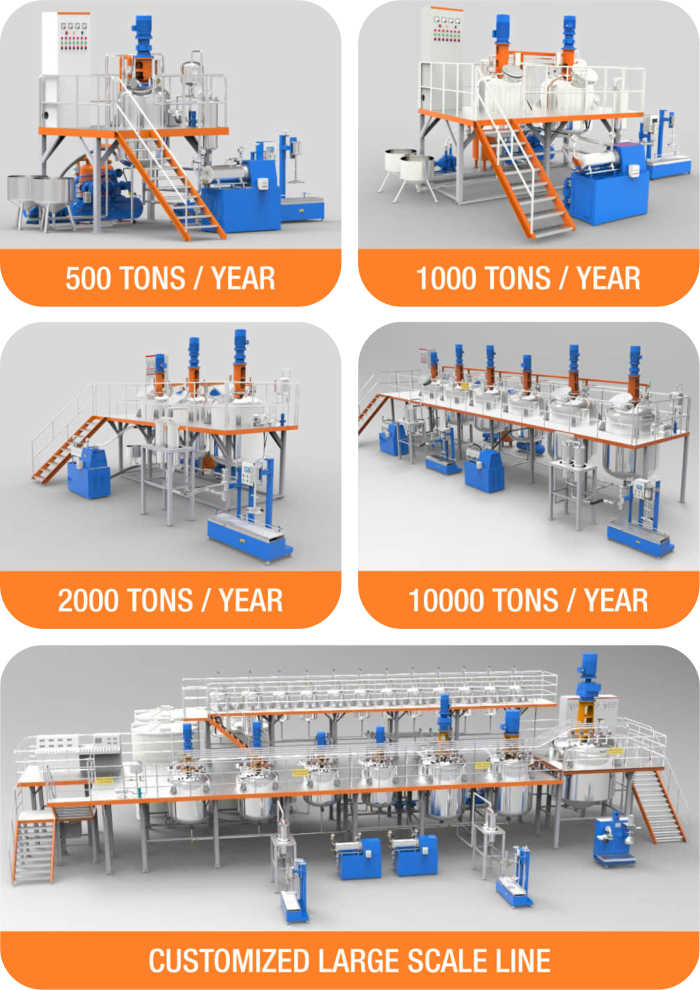

As one of China leading paint production equipment manufacturers, SeFluid has full ability to manufacture all kinds of paint production line. Our paint production line series cover a range from 500T/year to 50000T/year various customizing options.
We manufacture paint production line series for Many paint types
- Interior wall paint
- Exterior wall paint
- Ceramic paint
- Water-based (water based) paint
- Oil-based (oil based) paint
- Waterborne (water-borne) paint
- Latex paint
- Alkyd
- Primer
- Plaster
- Road Mark Paint
- Water-soluble paint
- Solvent-based paint
- Resin paint
- Epoxy paint
- Emulsion paint
- Enamel paint
- Car paint
- Putty
- Fire Retardant Coating
- Stone-like Coating
- Waterproof coating

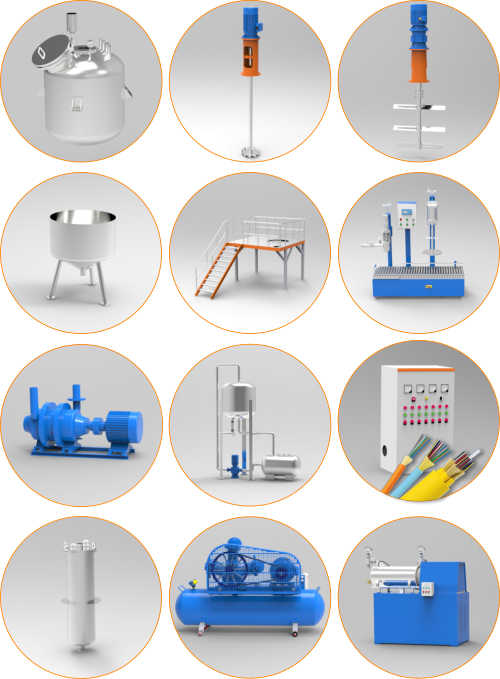

Key equipment of SeFluid's paint production line series
- Raw Material Feeding System: Mechanical conveyor, liquid positive pressure, negative pressure conveying or pumping.
- Dispersion Syetem: For pre-dispersing paint and making paste for the emulsion paint. There are wide choices of disperser to meet various dispersing requirements. For instance, disperser with scraper, vacuum type, dual-shaft type with butterfly agitator and platform type.
- Bead Mill: This machine is used for grinding materials with higher final fineness requirements. And, It is the most widely used milling machines in the market.
- Mixing System: According to different process and material properties (for example, viscosity and density), there are many types for choice. For instance, vacuum type, explosion-proof type, one shaft type, dual shaft type and three shaft type etc.
- Filtering System: With the super fine filter device, the disqualified large diameter particles and impurities will be filted out.
- Filling & Packing System: The packing capacity covers range from 0.5 Kg to 200 Kg. Moreover, the packing and filling machines of our paint production line series can be specially customized.
- Cleaning System: After the production of each lot, the automated cleaning system will quickly wash the tanks and pipeline for preparation of next production lot.
We offer formula and turn-key service
- Step One: The user submits the info about paint types they want to produce, yearly production need and additional requirements. Then, we will evaluate and design the right formula based on user's demand.
- Step Two: Our engineering team specially design the line based on user's unique information. And, we submit to the use for confirming. During the communication, changes will be made to the design if the user asks for.
- Step Three: After that, we start to produce the paint production line.
- Step Four: When production finish, we test the whole line. And, we detach the line orderly, ship it to user's site.
- Step Five: We offer documents showing how to install and use the paint production line. Or, we send engineers to user's site for installation, regulation and training.
- In addition, we provide instant after sales service by ways of phone call, live chat, TV meeting or email. Any help demand from user side will be answered in 8 hour.
